GRANULATION

A combined mixer dryer and granulator

I-POT

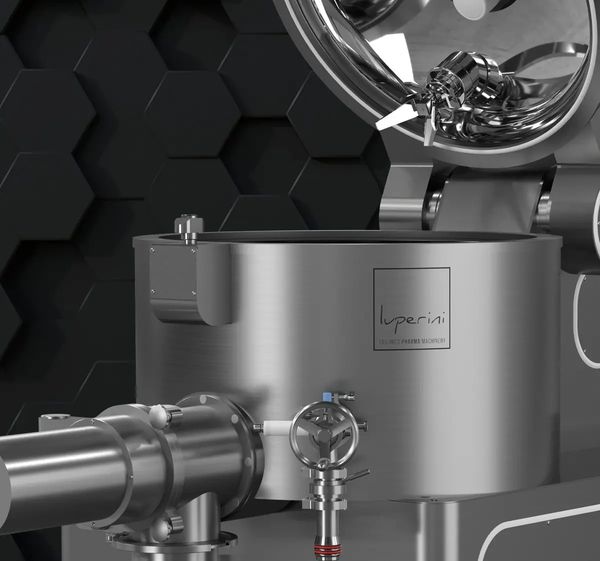

I-POT mixer, granulator and static dryer “One Step” with high mechanical action

 I-POT is a high-shear mixer, granulator and dryer (One Step).
The “high shear mixer granulator” version is designed to mix different pharmaceutical powders and in different formulations; thanks to the combined action of blade and crusher it can handle any type of product. With the “One Step” version the whole working process, from product loading, mixing, granulation, drying, is performed in the same machine avoiding problems of contamination and product loss that can occur when transferring powder from a traditional granulator to a Fluid Bed Dryer

Features and BENEFIts

Additional Information

  1.  Configurations and options best suited to each specific process are available through a scale-up.
  2. Equipped with automatic systems for loading the product by gravity through our I-PHARMA BIN, or by vacuum loading system (high containment with application of special valves).
  3. Spraying system for the binding solution, manual or automatic version.
  4. The I-Pot can be supplied with an oscillation system, heated jacket and introduction of hot air through the bottom blade, which allows processing difficult products, better granule quality and reduced drying time.
  5. With the drying option, in I-POT, the entire granule production process is carried out within the same container, thus avoiding risks of contamination.
  6. Possibility of unloading the product directly into I-PHARMA BIN or calibrating the product in line using the Luperini I-CONE MILL calibrator (possibility of high containment with application of special valves).
  7. The I-POT can be easily cleaned with WIP or CIP systems at the end of each cycle and inspected in its entirety, facilitating FDA validation.
  8. The I-POT can process water and solvent base products and recover all the vapour sucked in through an integrated condensation system.
  9. Flexible technology: processing of effervescent, heat- and moisture-sensitive products.
  10. Space-saving, wall-mounted installation possible.
  11. I-POTCONTROL control system with industrial touch screen PC, 21 CFR PART 11 for process control and supervision, automatic or manual.
  12. I-POT is available in an ATEX version for operation in hazardous areas.

Granulator used for producing consistent dry granules from fine powder

IPOT BROCHURE

Learn More

Download PDF
